Digikeijs DR4024 Servo Decoder Complete Set ~ Works With All Brands!

Digikeijs

Was: $82.99
Now: $73.23
SKU:
DR4024SET

Out of stock

Works with all DCC Brands

Digikeijs DR4024 Servo Controller Complete Set


The DR4024 Servo Decoder Starter Set has everything you need to setup 4 servos. Each output also has an extra switching output to switch a light or uncoupling track. Every output can also be calibrated with software which makes fitting servos a lot easier because they are set up after installation. The DR4024 decoder is the first servo decoder to work on the basis of function mapping. The decoder sees the ‘switching addresses’ as control functions for the various outputs. Depending on the mapping that has been set up, the decoder can use from 1 to 8 ‘switching addresses’.


Features:


4 servo outputs


4 switching outputs


Power indicator


Activity indicator


Mass simulation (eg semaphores, crossing gates)


Servo calibration via the control unit


Detailed mapping function


Multiprotocol (DCC/MM)


Fully CS2-compatible


POM (Programming on Main)


Separate power and signal input


Works with JMRI


Technical Features:


Power consumption: 15mA


Maximum servo load: 500mA per servo output (2 Amps total)


Maximum switching load: 1 Amp per output (3 Amps total)

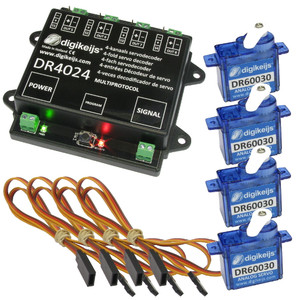

Includes:

Control Modual

4 Extension Cables

4 Servos with gears
