Digikeijs ~ DR4088LN-CS Start Set LocoNet ~ 32 Channels ~ Works With Digitrax

This feedback Start Kit with 32 integrated occupancy indicators is designed for monitoring 32 sections of track and is rated up to 3 Amps. The modules comprise four sections of 8 indication points, where each section has its own separate common. The network connections allow the modules to be placed up to 10 meters from each other.



The LocoNet connections make it particularly easy to connect the module to your Loconet DCC system. 16 channels Power detection LocoNet connection Activity indicator LED Rated up to 3 Amps (peak) Standard S88 and STP connections (S88-N). Small solid housing by applying SMD techniques



32 Inputs

Current detection (2-rail)

32 LocoNet connections

Activity led

Current load up to 3 Amps

Peak current up to 10 Amps (briefly)

Standard S88 and STP terminals (S88 N)

Small solid enclosure by using SMD technology

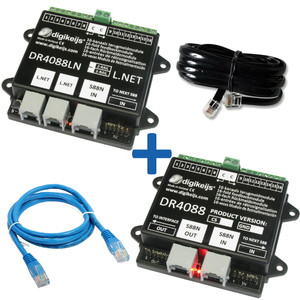

The set includes:



1x DR4088LN-CS



1x DR4088CS

1x DR60890 LocoNet cable 1 meter



1x DR60881 STP cable 1 meter
