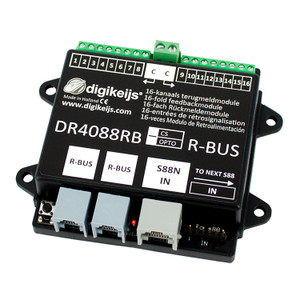

DR4088RB-CS with R-Bus S88 & S88-N Connections
The S88 connections make it particularly easy to connect the module to your Uhlenbrock Intellibox, Roco or ESU ECoS system.
This feedback module with 16 integrated occupancy indicators is designed for monitoring 16 sections of track and is rated up to 3 Amps. The module comprises two sections of 8 indication points, where each section has its own separate common. The network connections allow the modules to be placed up to 10 meters from each other.
Works with JMRI right out of the box
16 Channels Occupancy Detection
Activity indicator LED
Rated up to 3 Amps (peak)
Standard S88 and STP connections (S88-N)
R-Bus Connection
Small solid housing by applying SMD techniques
No Power Supply Needed, Place Anywhere!!
The CS version has integrated current detection and can be connected directly to the rails. The DR4088RB-CS detects as little as 1mA current consumption on the rails and then sends a continuous occupied signal to the control unit.
