DR4088RB-CS-OPTO - 32 Channel Feedback Occupancy Starter Set - For ROCO™
The DR4088RB-CS-Box Set is a dual feedback module designed for the Roco™ MultiZentrale-Pro™, Z21™ (black), z21™ (white) and is compatible with the Roco™ 10787. The DR4088RB is available in two versions: the OPTO and CS.
This is the OPTO version. The CS version has integrated current detection and can be connected directly to the rails. The DR4088RB-CS detects as little as 1mA current consumption on the rails and then sends a continuous occupied signal to the control unit.
The OPTO version is 100% compatible with the Roco™ 10787 and can therefore be connected in exactly the same way. This version is usually used where reed contacts or Roco™ switching rails are used.
32 channels Power detection RBUS™ connection
Features
Activity indicator LED
Rated up to 3 Amps (peak)
Standard S88 and STP connections (S88-N)
Small solid housing by applying SMD techniques

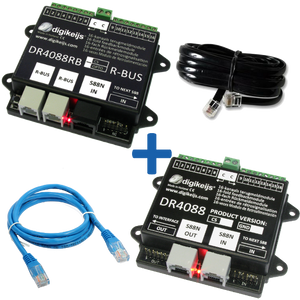

The set includes:
1x DR4088RB-CS
1x DR4088CS
1x DR60890 LocoNet cable 1 meter
1x DR60881 STP cable 1 meter
