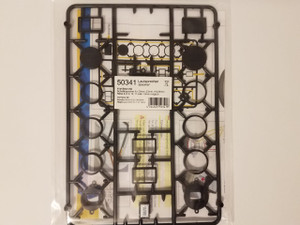

With our new modular speaker baffle set suitable for a single miniature speaker you can easily assemble your tailormade speaker baffle for two miniature speakers. Both – diameter and height – can be individually adapted to suit your needs. Even with one speaker the audio pressure is considerably better than with one circular speaker intended for these dimensions.
The popular sugar cube speaker 11x15mm and 8 Ohm impedance is supplied with a sealed mounting plate. First select one of the three base frames subject to the type of speaker you want to assemble, namely a circular frame with either 20mm or 23mm diameter or a rectangular type with 16x25mm. After you have inserted the speaker into the base frame you may now determine the height of the speaker baffle. The minimum height is 6mm, which can be raised to 8mm, 9mm, 10mm, 11mm or 13mm by adding up to three intermediate frames. The set contains two 2mm high and one 3mm high intermediate frame. They can easily be fixed with some glue suitable for plastic materials.
The higher the speaker baffle, the better the bass fidelity. It certainly pays off to utilize the entire space available.
The popular sugar cube speaker 11x15mm and 8 Ohm impedance is supplied with a sealed mounting plate. First select one of the three base frames subject to the type of speaker you want to assemble, namely a circular frame with either 20mm or 23mm diameter or a rectangular type with 16x25mm. After you have inserted the speaker into the base frame you may now determine the height of the speaker baffle. The minimum height is 6mm, which can be raised to 8mm, 9mm, 10mm, 11mm or 13mm by adding up to three intermediate frames. The set contains two 2mm high and one 3mm high intermediate frame. They can easily be fixed with some glue suitable for plastic materials.
The higher the speaker baffle, the better the bass fidelity. It certainly pays off to utilize the entire space available.
