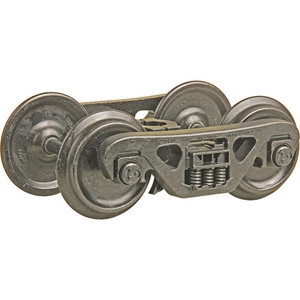

Kadee #974 Large Scale, G Scale (1:29) A.S.F 100-ton Roller Bearing Metal Trucks with 36" Smooth Back Metal Wheels
#974 A.S.F® 100-ton Roller Bearing Trucks with 36 inch smooth back wheels (31.5mm)
Large Scale, (1:29 Scale Ratio "G" Scale)
1 Pair
Mounts with a #4 screw.
Used from the modern diesel era to present day.
The ASF® 100-ton Roller Bearing Truck is from the modern diesel era. It has standard 36 inch wheels and a longer wheel base than the 50 or 70 ton roller bearing trucks. Our model is a faithful reproduction of the American Steel Foundries® Ride Control® truck. This truck is currently in use under a variety of rolling stock in North America.
Truck Features
• All Metal Non-Magnetic 2 Piece Self Equalizing Black 1:29 Trucks
• Large Scale 31.5mm, (1:29) 36 in. Smooth Back All Metal Non-Magnetic Black Wheels with Free Rolling Insulated Axles
• Runs on 45mm Track
• Clip on pads & brake rigging
• Bearing caps rotate
• Mounting Adapters for Bachmann, USA Trains, Aristo-Craft, LGB & PIKO Included
• Manufactured and assembled entirely in the U.S.A.
Truck Mounting Adapters
BACHMANN
USA TRAINS
ARISTO-CRAFT (REA), LGB & PIKO
If you are installing Kadee® large scale trucks on a car with factory trucks that came with larger diameter wheels like (30mm, 31mm 32.5mm or 35mm wheels). The truck mounting adapters we have provided with the Kadee® trucks should compensate for wheel diameter changes so your body mount Kadee® couplers will retain the correct coupler height. Always check your coupler height with a Kadee® coupler height gauge, fine tuning may be necessary.
