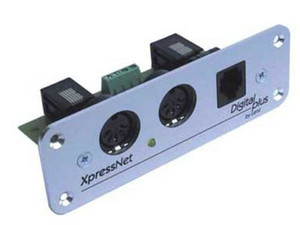

LENZ LA152 ~ XpressNet Digital Plus Panel Adapter ~ Also Works With Atlas
The LA152 provides an easy method to install XpressNET ports in convenient locations anywhere on your model railroad.
The LA152 uses the same wiring and thus is also compatible with NCE and Wangrow Cab Buses.
For a professional looking installation the LA153 faceplate can be easily attached to the front of the LA152.
The LA152 has 6 ports:
• Port A contains two RJ12 six wire phone connectors. All six wires are connected between the two A ports.
• Port B is a four wire RJ14 connector, the outer two wires in Port A are not connected to Port B.
• Port C contains two 5 pin DIN connectors.
• Port LMAB contains screw terminals for the four wires needed to connect XpressNET.
