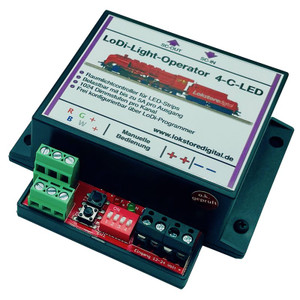

With the LoDi-Light-Operator 4-C-LED we have developed a device that is unparalleled on the market.
The decoder is probably the most advanced room light decoder!
Years of experience, both positive and negative, have shown us how not to do it.
We took this as an opportunity to find a sensible and easy-to-implement solution.
The result is a device that is well thought out and will also convince you.
The properties of the LoDi Light Operator 4-C-LED
Room light controller for the SC-BUS for connection to the LoDi Shift Commander
All outputs work with a frequency of 100Hz and 1024 dimming levels,
that simulate a realistic process. (With other systems max. 255 dimming levels)
You have 4 channels with an output of up to 5 amps per output.
This means that it can be loaded with up to 13 meters of LED stripe (with 120 LEDs per meter).
All common LED strips with an operating voltage between 12 and 24 volts can be connected to the
LoDi-Light-Operator 4-C-LED can be connected.
Manual operation possible
Freely configurable via the LoDi ProgrammerFX.
