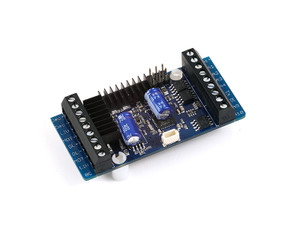

Massoth eMOTION XXL II DCC Decoder ~ 10 Amp ~ 12 Function ~ LGB & SUSI ~ 8153101
Completely new developed and even more powerful XXL II Loco Decoder with up to 8 amps motor current and 10 amps total current for large locomotives with up to 4 motors.
Highlights: New Function Mapping, F0-F127, 10 Function Outputs, 2 Servo Controls, Bus Connection for MASSOTH/LGB and SUSI, Overload and temperature protection for motor and function outputs. Updateable.
Description
Powerful 8 Amp driving decoder with 12 function outputs
Completely new developed and even more powerful is the new XXL II locomotive decoder with up to 8 amps traction current and 10 amps total current.
Suitable for locomotives with up to 4 engines. This high current decoder is particularly suitable for high demands.
Highlights: New function mapping, F0-F127, 12 switching outputs, 2 servo connections, bus connection for SUSI, overload and temperature protection for motor and function outputs.
Can be updated.
With up to 10 ampere peak current and 6 ampere continuous current, this NMRA/DCC compatible locomotive decoder is predestined for locomotives with particularly high power consumption.
Thanks to intelligent hardware, an additional cooling surface is no longer required; smaller heat sinks on the decoder are sufficient to dissipate the heat generated.
The features of the eMOTION XXL locomotive decoder at a glance:
Locomotive decoder for digital and analog operation
14, 28 and 128 speed steps
Motor output loadable with 6 A continuous current (10A peak)
Bus interface for SUSI
programmable travel curve
Adjustable starting, middle and maximum speed (as well as delay times)
Parallel control for all light and function outputs
Digital and analog operation with automatic recognition
compatible to NMRA DCC and LGB® MZS
Latest generation load control (for digital and analogue operation)
adjustable motor frequency
2 light connections (front, rear) max. 0.5A each
10 function outputs (6 with 0.5A each, 4 x unamplified 10mA)
2 servo connections
Light and function outputs can be dimmed and activated in analog mode
New function mapping
Shunting mode and delay times can be switched via function key
all function outputs freely addressable (F1 to F28 + binary state)
Integrated voltage buffer connection for smooth running (accessory: 8151001 or 8151501)
Overload and temperature protection for motor and function outputs
Reset function for all CV values
Read CV
CV Write
Write CV bit by bit
direct register programming (CV 1 – CV4)
POM – Program on Main (programming on the track)
Updateable
