Description:

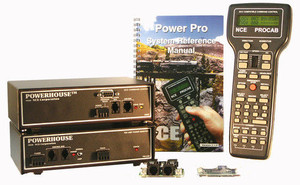

The PH-10 has all the same features as our Power Pro 5 Amp system described previously, but with 10 Amps of power for O-Scale and Large Scale (G) layouts. Requires a 18V, 10-12 amp power supply such as the Brutus (part number 5240241) Contents of the PH10 Power Pro System: Powerhouse System Box (CS02) with 4 pin Power/Program Track Plug 18v 1amp DC Power Supply for CS02 Powerhouse 10 amp Booster box (PB110a) with 4 pin Power plug and 4 pin track plug Pro Cab Throttle D408 4 amp Locomotive Decoder Coiled cable for cab - 6 wire RJ12 cab bus cable Seven foot flat cable for cab - 6 wire RJ12 cab bus cable Twelve inch flat cable - 4 wire RJ-H control bus cable UTP cab bus panel Power Pro system reference manual.
D408SR Decoder 5240111
This is a true 4 Amp (12 Amp peak) self contained decoder for S, O and large scale with connectorized wire harnesses. Functions supported: Headlight(s) plus seven additional function outputs. All function outputs have extended effects generators capable of producing Mars lights, Ditch lights, Strobes, Beacons, etc. for each function output if desired. Size: 2.35″ x 1.2″ x 0.35″.
The PH-10 has all the same features as our Power Pro 5 Amp system described previously, but with 10 Amps of power for O-Scale and Large Scale (G) layouts. Requires a 18V, 10-12 amp power supply such as the Brutus (part number 5240241) Contents of the PH10 Power Pro System: Powerhouse System Box (CS02) with 4 pin Power/Program Track Plug 18v 1amp DC Power Supply for CS02 Powerhouse 10 amp Booster box (PB110a) with 4 pin Power plug and 4 pin track plug Pro Cab Throttle D408 4 amp Locomotive Decoder Coiled cable for cab - 6 wire RJ12 cab bus cable Seven foot flat cable for cab - 6 wire RJ12 cab bus cable Twelve inch flat cable - 4 wire RJ-H control bus cable UTP cab bus panel Power Pro system reference manual.
D408SR Decoder 5240111
This is a true 4 Amp (12 Amp peak) self contained decoder for S, O and large scale with connectorized wire harnesses. Functions supported: Headlight(s) plus seven additional function outputs. All function outputs have extended effects generators capable of producing Mars lights, Ditch lights, Strobes, Beacons, etc. for each function output if desired. Size: 2.35″ x 1.2″ x 0.35″.
