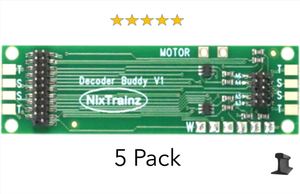

NixTrainz ~ Original Decoder Buddy NTZ4 V1B For 21 Pin Decoders ~ 1K Resistors ~ 5 Pack
Decoder Buddy Information
The Decoder Buddy was developed for the 8 output decoders.
This mother board does not include the 21-Pin Decoder.
This mother board requires soldering.
This printed circuit board is NOT INTENDED FOR USE IN A DC SYSTEM. However, if the decoder you are using supports DC operation it should work.
The Original Decoder Buddies come with standard 1K resistors onboard.
The mother board includes::
- One 21 Pin Decoder receptacle
- Two pairs of track input pads
- One pair of motor input pads
- One set of stay alive pads, U+, GND. (The white wire from a Power Pack can be soldered onto the Original Decoder Buddy fairly easily)
- Two pairs of speaker pads in parallel by side
- 8 lighting outputs on a separable “small connector board”
Resistors for use with LED lighting. The “0” ohm resistors accommodate previously installed LEDs with resistors in line and “12-volt LEDs”. It is IMPORTANT to realize that resistors must be used when LEDs are connected to the lighting outputs of the custom “0” Ohm boards!!!
