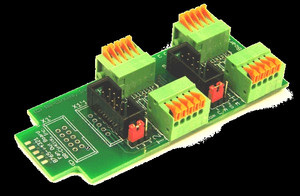

RR-CirKits ~ FOB-C ~ Fan Out Board ~ Dual Direct
This board is specifically designed to terminate the dual cable, eight stall motor, connections from a single SMD-8 board.
It includes on board jumpers to select common positive or common negative for optional single ended connections.
This board may also serve as a convenient connection point for two flat ribbon cables used as inputs to the RR-CirKits ports.
Quick release compression connectors simplify repeated connection of #18 and smaller wires.
