Tam Valley Depot ~ Remote DPDT Relay Board ~ RDR001

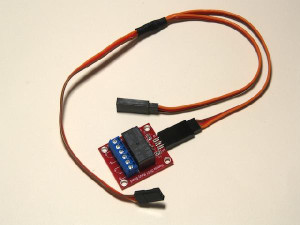

This remote relay plugs in to the breakout daughter board (below) and gives you two circuits for powering frogs, signals and so forth. Board has a 12V, 2A hi-sensitivity relay that draws just 23 mA, relay drive circuitry, and a terminal block for easy wiring.
Can also be used without the Quad - red wire, 12V, black wire, ground, white wire, signal (0V = OFF, greater than 1.4V is ON). Comes with a 12" extension cord - extra length can be added with servo extensions.
See diagram below for frog wiring instructions.
Does not work with Micro Singlet. For Singlet II only
This remote relay plugs in to the breakout daughter board (below) and gives you two circuits for powering frogs, signals and so forth. Board has a 12V, 2A hi-sensitivity relay that draws just 23 mA, relay drive circuitry, and a terminal block for easy wiring.
Can also be used without the Quad - red wire, 12V, black wire, ground, white wire, signal (0V = OFF, greater than 1.4V is ON). Comes with a 12" extension cord - extra length can be added with servo extensions.
See diagram below for frog wiring instructions.
Does not work with Micro Singlet. For Singlet II only
