TCS ~ A6X-KA ~ HO DCC Drop In Decoder ~ 6 Functions ~ Keep Alive Wires ~ 1430

TCS

Was: $58.95
Now: $47.16
SKU:
TCS-1430
Adding to cart… The item has been added

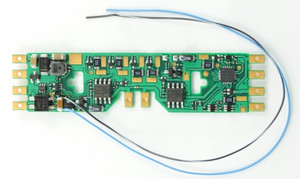

TCS A6X-KA HO DCC Drop In Decoder With Keep Alive Wires 1430















The A6X-KA is six function HO-scale "drop-in" style mobile decoder with integrated 1.5V power supply for Atlas, Athearn, Kato, etc. locomotives. Examples include the following:

Athearn:

F59PHI
F3
Atlas:

RS-1/RS-3/RS-11
C424
GP7
Kato:

GP35
The A6X-KA includes factory-installed Blue and Black&White wires to use when connecting Keep Alive®.

Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.

Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.

DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.

RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.

Variable Momentum:
Allows you to make custom acceleration and deceleration curves.

1.5 Volt Power Supply:
This product has an on-board 1.5 Volt power supply for use with 1.5 Volt bulbs without resistors.

LED Support:
This product does not require external resistors when connecting LED's.

Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.

Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.

Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!

Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.

Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.

Airwire™ Compatible:
Fully compatible with Airwire™ operation.

User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.


Interface Type: Drop-In
Dimensions (L x W x H): 2.85" x 0.682" x 0.155" or 72.39mm x 17.32mm x 3.94mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 6
Function Rating: 100 mA
12V Outputs: 6
LED Outputs: 6
1.5V Bulb Outputs: 6
