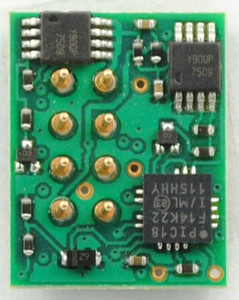

TCS DP5 Decoder ~ HO Scale ~ 0.509" x 0.636" x 0.104" ~ 1335
The DP5 is a HO-Scale direct-plug decoder designed for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP5 can be plugged into many locomotives with no effort. The DP5 has 5 available lighting functions, and has been tailored to work with Atlas Silver Series engines. This decoder will also fit many other engines with 8-pin NMRA sockets, including KATO and Athearn where additional lighting functions are needed. An excellent choice for engines with ditch lights!
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specifications:
Interface Type
Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.509" x 0.636" x 0.104" or 12.92mm x 16.15mm x 2.64mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 5
Function Rating: 80 mA
12V Outputs: 5
