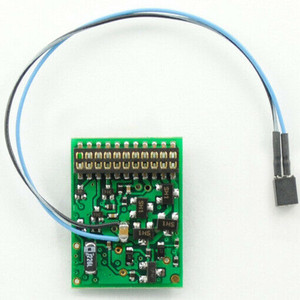

TCS EU821-KAC Decoder ~ HO Scale ~ 0.797" x 0.613" x 0.197" ~ 1676
This decoder is designed specifically to meet the needs of European HO-Scale modelers. This decoder is compliant with the NEM660 standard found in locomotives equipped with the MTC 21-pin socket. The EU series decoders are compatible with all of TCS' motherboards, or any locomotive equipped with the MTC 21-pin socket.
Attached is an harness terminating in a 2-Pin Quick Connector for use with A TCS Keep Alive™.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specifications:
Interface Type
Direct-Plug (21-Pin MTC)
Dimensions (L x W x H): 0.797" x 0.613" x 0.197" or 20.24mm x 15.58mm x 5mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 8
Function Rating: 100 mA
12V Outputs: 8
