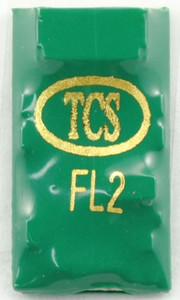

TCS FL2 DCC Function Only Decoder With 6 Pin Plug 1002
This function-only decoder is designed for any scale where extra lighting features and functions are needed. This decoder includes a 6-pin harness for easy installation and wiring. These decoders are commonly used for smoke coils.
Note: FL-series decoders do not provide motor control. A separate decoder must be used for motor function.
Function Only:
This decoder only has function control for lighting, and does not provide sound or motor control.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
Interface Type Direct-Plug (6-pin JST)
Dimensions (L x W x H): 0.83" x 0.466" x 0.161" or 21.07mm x 11.84mm x 4.08mm
Scale: HO Scale O Scale G Scale N Scale
Total Functions: 2
Function Rating: 200 mA
12V Outputs: 2
