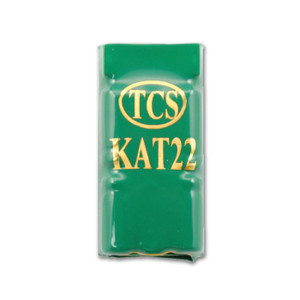

TCS KAT22 Decoder ~ HO Scale ~ 1.315" x 0.65" x 0.35" ~ 1464
This decoder is a T1 decoder with built in Keep-Alive™, and will keep your locomotive operating for 6-15 seconds without power (As a result of dirty track, poor contacts, etc.). This decoder is physically larger than a T-series decoder, but features the same operational characteristics. This decoder is compatible with any locomotive which uses the JST-9 interface.
NOTE: The Green and Purple wires on the connector are not used with this decoder. The KAT22 is a 2-function decoder, but still uses the 9-pin JST which includes the Green and Purple wires for up to 4 functions.
Keep-Alive®:
Included on-board for smooth, stutter-free operation.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specifications:
Interface Type
Hard-Wire
Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 1.315" x 0.65" x 0.35" or 33.4mm x 16.5mm x 8.9mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 100 mA
12V Outputs: 2
