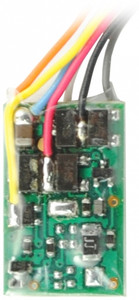

TCS M1P-1" ~ 2 Function BEMF 1" Harness HO & N DCC Decoder 8 Pin Plug 1385
The M1 is a small form factor hard-wire decoder for HO and N scale installations. This decoder is designed for installations where space is limited. The M1P-1" decoder comes connected to a 1" (2.54 cm) long harness which is terminated with a 8-Pin NMRA plug.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Interface Type: Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.587" x 0.365" x 0.135" or 14.91mm x 9.27mm x 3.43mm
Scale: HO Scale N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 100 mA
12V Outputs: 2
