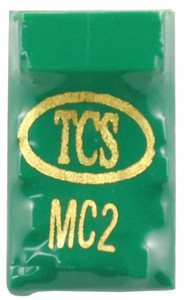

TCS M2 Micro DCC Decoder Small Form Factor 7 Pin or Hard-Wired 2 Functions 1013
The MC2 is a 2-function HO and N scale hard-wire decoder with a 7 pin JST socket. The MC2 is designed for use in locomotives where a T-series or M-Series decoder is too large. This decoder may be hard-wired, but is also available with 8-pin NMRA plugs installed. See the "Variants" page for more options.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Interface Type: Hard-Wire or Direct-Plug (7-Pin JST)
Dimensions (L x W x H): 0.709" x 0.419" x 0.191" or 18.02mm x 10.63mm x 4.85mm
Scale: HO Scale N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 100 mA
12V Outputs: 2
Decoder Variant (Harnessed versions etc.):
MC2A
MC2-KA
MC2-KAC
MC2P-SH
MC2P-MH
MC2P-LH
MC2P-UK
MC2-5PK
