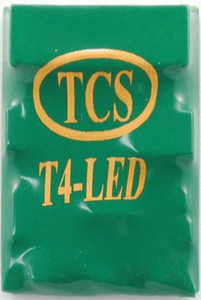

TCS T4-LED - Decoder 1482
The T4 is a multi-purpose HO-scale decoder. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The on-board resistors on this decoder allow for LED installations without the need for external resistors for F0F, F0R, F1, or F2. Use the standard T4 decoder if your locomotive uses incandescent bulbs.
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Allows you to make custom acceleration and deceleration curves.
This product does not require external resistors when connecting LED's.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
Configure custom speed curves and set speed limits.
The T4 is a multi-purpose HO-scale decoder. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The on-board resistors on this decoder allow for LED installations without the need for external resistors for F0F, F0R, F1, or F2. Use the standard T4 decoder if your locomotive uses incandescent bulbs.
- Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
- Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
- DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
- Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
- LED Support:
This product does not require external resistors when connecting LED's.
- Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible:
Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Interface Type: Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 0.969" x 0.661" x 0.193" or 24.61mm x 16.79mm x 4.9mm
Scale: HO Scale
Continuous/Peak: 1.3/2.0 Amp
Total Functions: 4
Function Rating: 100 mA
LED Outputs: 4
