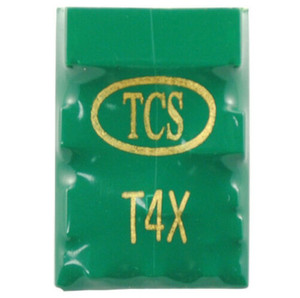

TCS T4X ~ HO Scale DCC Motor Decoder ~ 4 Function ~ 9-pin JST Plug ~ 1024
The T4X is a multi-purpose HO-scale decoder. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The T4X may be used in locomotives that have ditch lights, in addition, to forward and reverse headlights.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specifications:
The T4X is a multi-purpose HO-scale decoder. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The T4X may be used in locomotives that have ditch lights, in addition, to forward and reverse headlights.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specifications:
Interface Type
Hard-Wire
Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 0.969" x 0.661" x 0.193" or 24.61mm x 16.79mm x 4.9mm
Scale: HO Scale
Continuous/Peak: 1.3/2.0 Amp
Total Functions: 4
Function Rating: 100 mA
12V Outputs: 4
