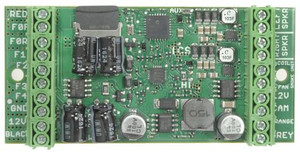

TCS WOW501-Diesel For Large Scale WOWSound With Keep Alive 1605
The WOW501 is a universal, 5 Amp sound decoder for large-scale locomotives. The WOW501 includes Keep Alive® on-board for stutter-free operation. Function 5 and 6 may be programmed to control a smoke unit with a coil and fan. By programming CV58 with a value of 9, the smoke unit will react to the prime mover notch.
For a complete list of available sounds, check out the "Sounds List" under the "Documents" tab.
TCS' world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.
Included on-board for smooth, stutter-free operation.
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Allows you to make custom acceleration and deceleration curves.
This decoder can be used with 12 Volt bulbs.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV's!
Configure custom speed curves and set speed limits.
Choose from multiple throttle modes to meet your operating needs.
A WOWSound original feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically choose the active notch sound. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
Interface Type: Hard-Wire
Dimensions (L x W x H): 3.004" x 1.413" x 0.551" or 76.3mm x 35.9mm x 14mm
Scale: O Scale G Scale S Scale
Continuous/Peak: 5/10 Amp
Total Functions: 8
Function Rating: 1A
12V Outputs: 8
The WOW501 is a universal, 5 Amp sound decoder for large-scale locomotives. The WOW501 includes Keep Alive® on-board for stutter-free operation. Function 5 and 6 may be programmed to control a smoke unit with a coil and fan. By programming CV58 with a value of 9, the smoke unit will react to the prime mover notch.
For a complete list of available sounds, check out the "Sounds List" under the "Documents" tab.
- CD-Quality Sound:
TCS' world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.
- Keep-Alive®:
Included on-board for smooth, stutter-free operation.
- Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
- Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
- Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
- Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible:
Fully compatible with Airwire™ operation.
- Audio Assist®:
TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV's!
- User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
- Throttle Modes:
Choose from multiple throttle modes to meet your operating needs.
- Proto Notch™:
A WOWSound original feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically choose the active notch sound. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
Interface Type: Hard-Wire
Dimensions (L x W x H): 3.004" x 1.413" x 0.551" or 76.3mm x 35.9mm x 14mm
Scale: O Scale G Scale S Scale
Continuous/Peak: 5/10 Amp
Total Functions: 8
Function Rating: 1A
12V Outputs: 8
