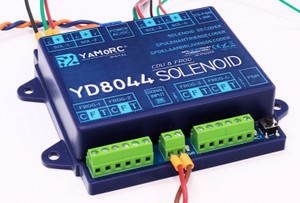

YaMoRC ~ 4-fold Solenoid Decoder with CDU and Frog Supply ~ YD8044
Specially designed to cope with, high-current, solenoid point motors, the YD8044 is our 4-fold solenoid decoder with CDU and Frog Supply.
It presents the following features:
Specially designed to cope with, high-current, solenoid point motors, the YD8044 is our 4-fold solenoid decoder with CDU and Frog Supply.
It presents the following features:
- Four independent 9.5Amp solenoid outputs
- Smart, 9400 uF CDU, monitoring charge levels for safe and powerful switching
- Only 380 mA power consumption during charging
- Frog polarization through a 2 Amp relay which switches together with the solenoid outputs
- Very simple basic setup (base address), by pressing the programming button and switching the desired turnout address
- No complicated CV settings.
- Clear-text configuration based upon our new ES-Link technology.
- With our YD9101-Config or YD7100-Command, configuration can be done via a built-in web interface. No need for PC software or Phone/Tablet Apps!
- or -
when using the classic Windows PC interface, the YD9100 config-USB-stick as well as our YD6016LN can provide the configuration. - Four address-to-output mappings, each mapping can be a free choice address that can switch any and every output
- Sequential output activation based on pulse time and CDU charge level.
- CDU startup delay adjustable to prevent tripping short circuit protection in boosters
- Very modest power supply requirements. Even for SEEP/Gaugemaster motors a 15V/500mA wall wart is more than enough.
- Not suitable for motorized point motors.
