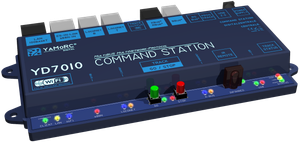

YaMoRC ~ DCC Central Command Station ~ YD7010
Power Supply Not Included - Option Links Below
Building on the immense succes of our YD9401 upgrade for the DR5000, we decided to bring a complete Command Station, the YD7010, that includes the proven YD7001 technology and YD9401 Network Module.
The command station is based on the technology used in our YD7001-E, but with a completely new designed mainboard, with improved component choice and PCB layout to render robustness and extended functionality. Of course the YD7010 comes with our YD9401 is pre-installed.
Further we improved some visual and usability aspects: Different colors for the RJ connectors which were easy to confuse when they were all gray. Now the XBus and Network sockets have different colors to the ES-Link/s88N, LocoNet and BBus connectors.
On the front we moved the GO- and STOP-LEDs to be in-line with all LEDs and that prevents touching and/or damaging the LEDs when operating the pushbuttons.
On the back we moved the RS-Bus and Program-Track terminals into one 4-way block. This effectively prevents the terminals of turning and, worst case, shearing off !
The product placement of the YD7010 in our portfolio is meant to be an Entry Level, yet very complete and versatile DCC command station.
A summary of the presented features:
Unique DCC signal generator:
– With priority control and interleaved packet generation.
– Changes sent by any interface are directly being reflected to the track.
– Generates RailCom Cut-Out.
3 A integrated Booster
Operating voltage range from 15 – 19 VDC. Giving a track-voltage of 13.8 – 17.8 Volts. That means safe for your N-scale equipment and powerful for H0.
Multiple Model Railroad compatible Interface Busses:
– LocoNet, the world standard set by Digitrax Inc.
– XpressNet, from the inventor of DCC: Lenz
– Good old S88 signalling, fully compatible with ES-IN-Link by use of our YD6902-EXT adapters.
USB interface for three virtual COM-ports:
– YD.Command **
– LocoNet
– XpressNet
The USB connection can also be used to update the YD7010`s firmware
Full network capabilities:
– WiFi Access Point,
gives direct access to smartphones, tablets and handheld controllers
– 100baseT RJ45 wired network socket,
connect and bind to your home network and reliably connect your PC software
By means of the built in YD9401 Module which provides:
– 6 different but SIMULTANEOUS usable network protocols on WiFi and LAN:
* XpressNet-LAN,
* Z21®,
* LocoNet Binary,
* LocoNet LBServer,
* JMRI: WiThrottle
* YD.Command **
Booster Interface by LocoNet-B with strong, 800mA LocoNet RailSync signals
Handcontroller, feedback modules etc. interface by LocoNet-T with strong, 800mA 12VDC power supply
Powerful 1 Amp XpressNet supply
Roco R-BUS compatible feedbacks on XpressNet socket
Roco B-BUS for compatible boosters on RJ10 socket
Lenz RS-BUS compatible feedbacks
Infra-Red sensor for the use of IR-based remotye controllers like the Uhlenbrock IRIS or the Piko DigiFern
Clear LED indicators
Programming:
– POM write
– Service Mode ( programming track )
– ES-Link capable modules like YD8044, YD8008, YD8116, YD6016ES, YD7403
Optional Power Supplies , quality made, YaMoRC spec, switch mode power supply with choice of:
Disclaimer:
YD.Command is the internal YaMoRC communication protocol. It is not publicly open, nor does YaMoRC supply support 3rd parties to use it. Futher can it be subject to change on demand and at will of YaMoRC, without further notice or explanation.
EAN-Code: 6091002074032
