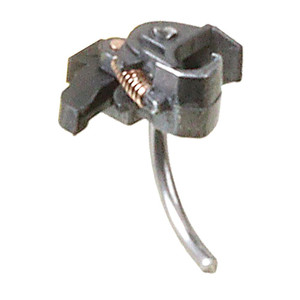

#51 HO Scale NEM 363 European-Style Couplers - Short (7.11mm , .280 inch , 9/32")
Package Includes:
(2) Pair #51 NEM 363 Couplers (Aassembled) - Short Underset
(2) Pair NEM 363 to NEM 362 Adapters
(2) Pair Bolt-on NEM 363 Adapters
(2) #622 Knuckle Springs
#51 Coupler Features:
Material - Metal Knuckle, Plastic Coupler Dovetail Shank
Shank Length - Short (7.11mm , .280 inch , 9/32") (pulling face to the dovetail sholder)
Coupler Offset - Underset Shank
Knuckle Spring - #622
Centering System - NEM 363 European Style Coupler
Head - Standard Head
Mounting Specifications:
Shank Length - 7.11mm , .334"
Coupler Centerline Height - 9.9mm , .390"
Trip Pin Height - .08mm , .031"
Bolt-on NEM 363 Adapter Screw size - 0-48 screws or M1.4 metric screws
