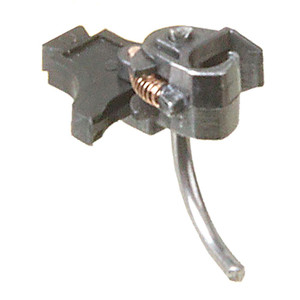

#53 HO Scale NEM 362 European Style Couplers - Long (10.67mm , .420 inch , 27/64")
Package Includes:
(2) Pair #53 NEM 363 Couplers (Assembled) - Long Underset
(2) Pair NEM 363 to NEM 362 Adapters
(2) Pair Bolt-on NEM 363 Adapters
(2) #622 Knuckle Springs
#53 Coupler Features:
Material - Metal Knuckle, Plastic Coupler Dovetail Shank
Shank Length - Long (10.67mm , .420 inch , 27/64") (pulling face to the dovetail shoulder)
Coupler Offset - Underset Shank
Knuckle Spring - #622
Centering System - NEM 363 European Style Coupler
Head - Standard Head
Mounting Specifications:
Shank Length - 10.67mm , .420"
Coupler Centerline Height - 9.9mm , .390"
Trip Pin Height - .08mm , .031"
Bolt-on NEM 363 Adapter Screw size - 0-48 screws or M1.4 metric screws
