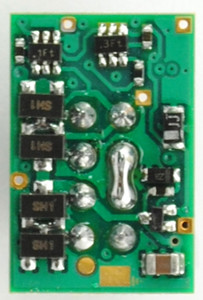

TCS DP2-LL 8 Pin For Life Like FA1 ~ 1412
HO-Scale decoder designed as a direct-plug replacement decoder for Life Like engines equipped with 8-pin NMRA sockets. This decoder fits the Life Like FA1 as well as other Life Like locomotives with a headlight and a separate mars light. Function 0 reverse is physically shorted to Function 1 which controls the Mars Light in these engines. This decoder is not designed to be used in other locomotives which use DP-series decoders.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Interface Type: Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.474" x 0.702" x 0.12" or 12.04mm x 17.83mm x 3.05mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
12V Outputs: 2
