TCS DP2X-UK-KA Decoder ~ HO Scale ~ 0.474" x 0.702" x 0.16" ~ 1434
The DP2X-UK-KA is a HO-Scale direct-plug decoder designed for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP2X-UK-KA can be plugged into many locomotives with no effort. In contrast to the standard DP2X, the DP2X-UK has been oriented 90 degrees off to more easily fit into European-manufactured locomotives.

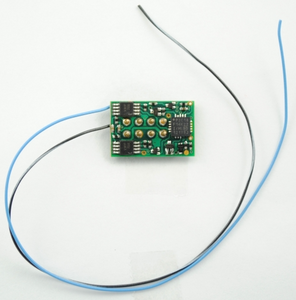

The DP2X-UK-KA includes factory-installed Blue and Black&White wires to use when connecting Keep Alive®.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Specifications:
Interface Type
Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.474" x 0.702" x 0.16" or 12.04mm x 17.83mm x 4.06mm
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
12V Outputs: 2
